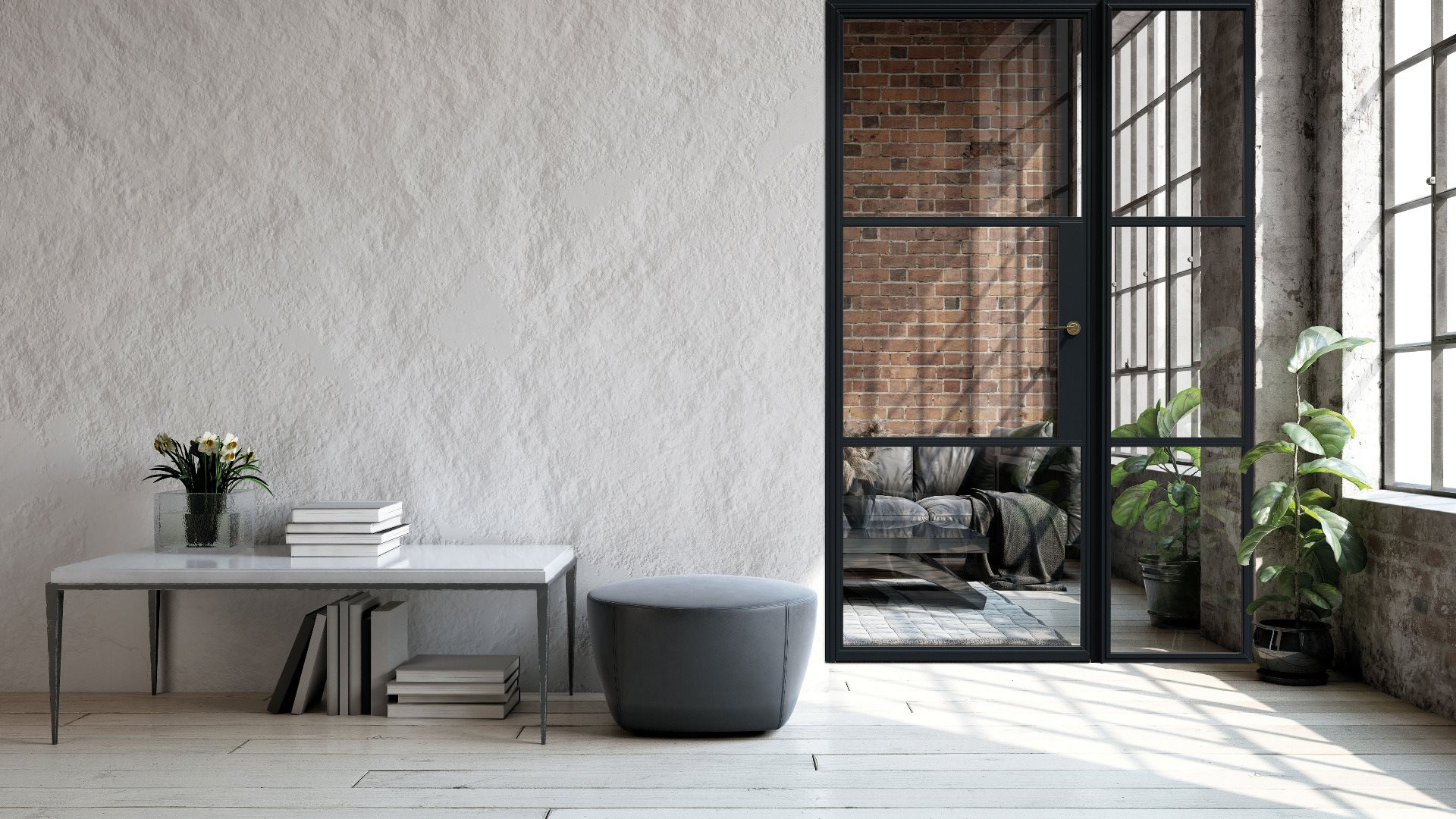

Hinged Doors
Single and double doors with a range of width, glazing, hinge and handle options — traditional through to industrial.
Holding Page
AluSpace Interior Doors & Screens.
Transforming living spaces with light, air and slim aluminium lines.
About AluSpace
The Interior Screening System
Smart's AluSpace system was developed to create light and airy internal environments, with sleek lines that complement the wider Smart window and door ranges. It divides or delineates residential and commercial spaces of any shape and size, while providing an effective acoustic barrier.
With hinged single and double doors, plus pivot and sliding options alongside the fixed glazed screen, the system offers almost limitless design possibilities. Extruded at Smart's UK manufacturing plant in the south west of England, it is engineered for ease of fabrication and installation — outstanding aesthetics and great value.
- Elegant, slim sightlines
- Hinged, sliding, pivot & fixed options
- Effective acoustic separation
- Extensive colour & handle choice
- UK extruded and manufactured
- Low maintenance in use
The Range
Four core configurations, endlessly combinable.

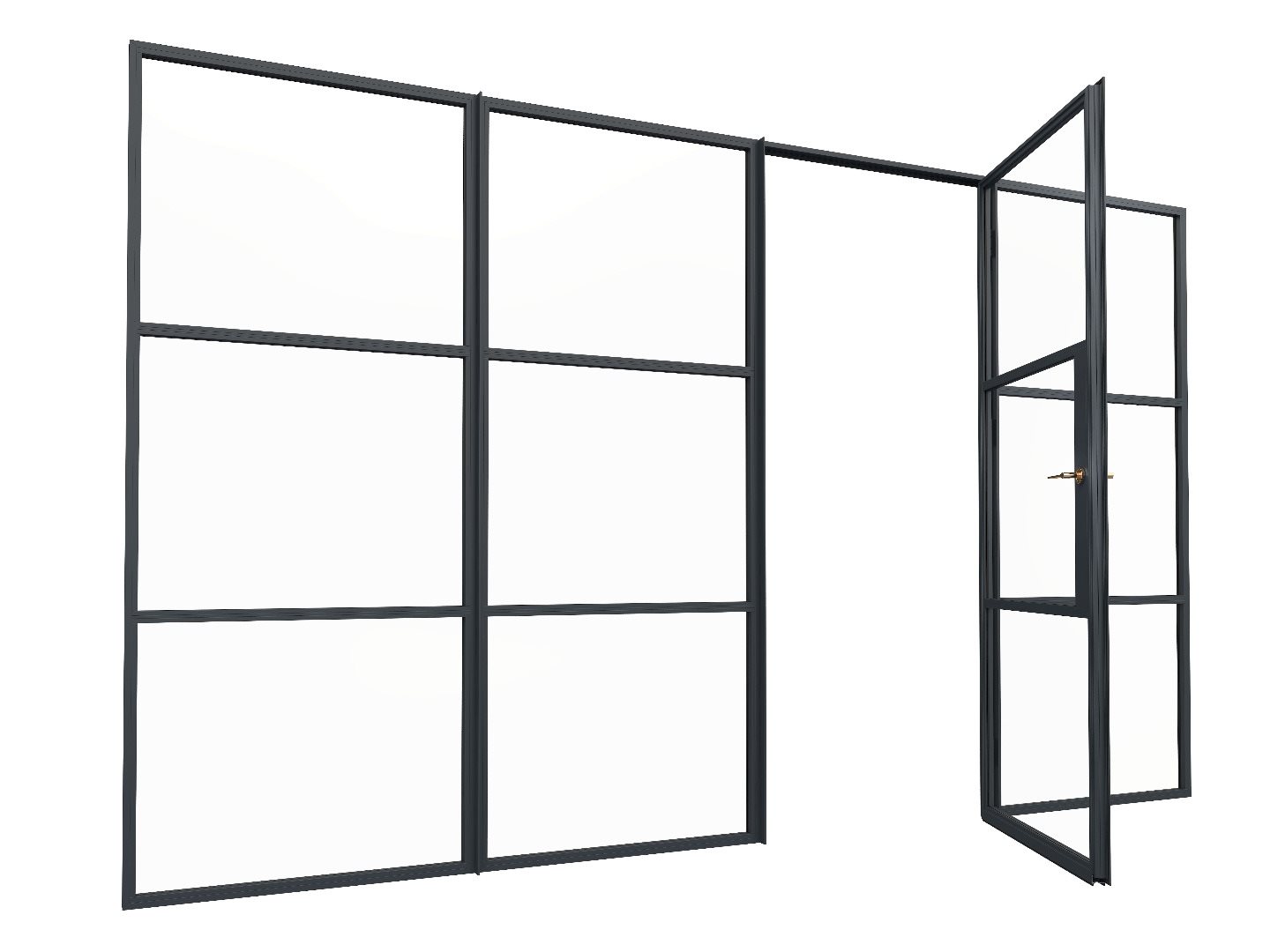

Sliding Doors
Close or partially open the screen, with a choice of contemporary or vintage track and rail options.

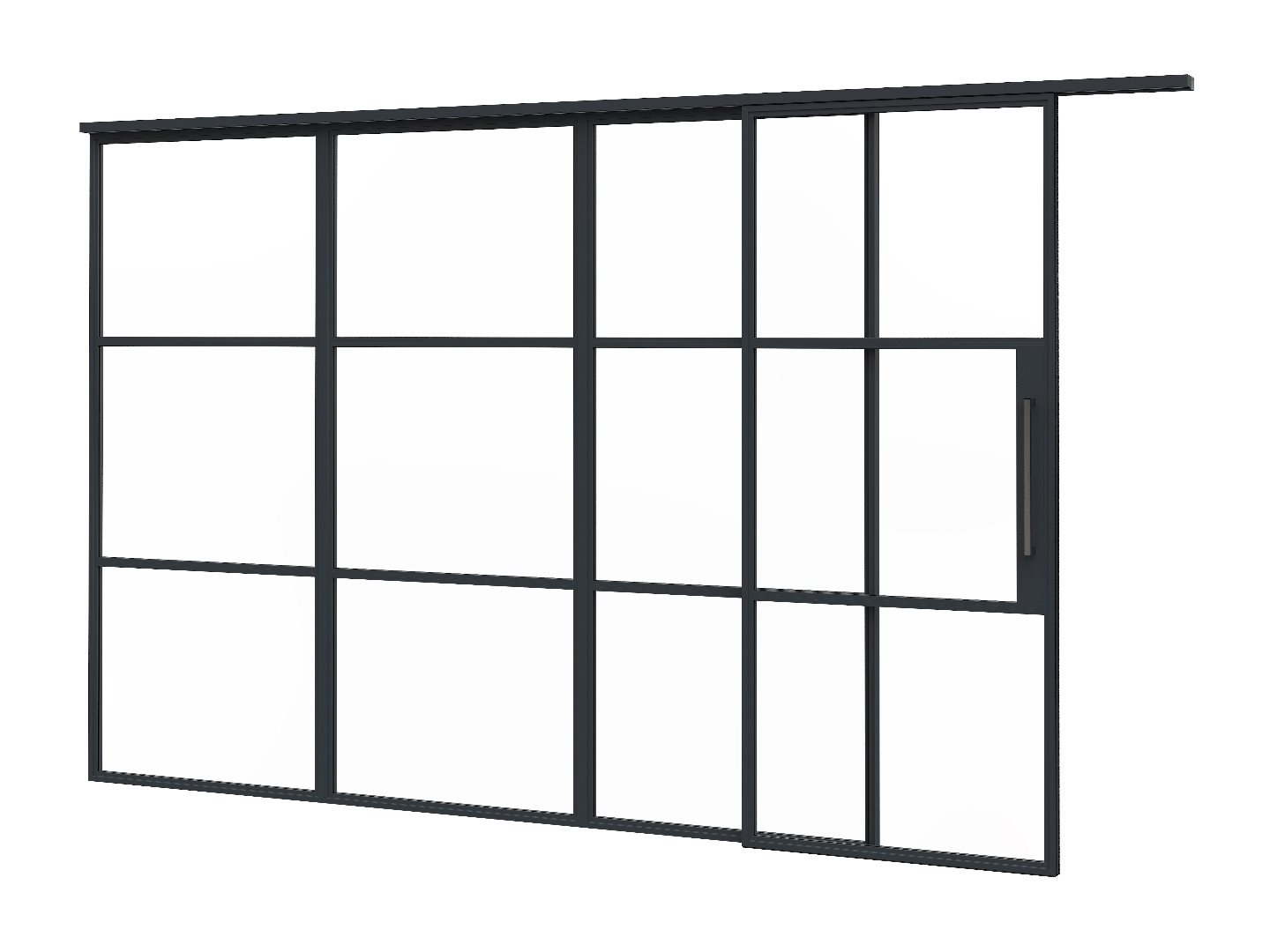

Pivot Doors
Reconfigure a space instantly. Available up to 2 metres wide with standard or soft-close operation.

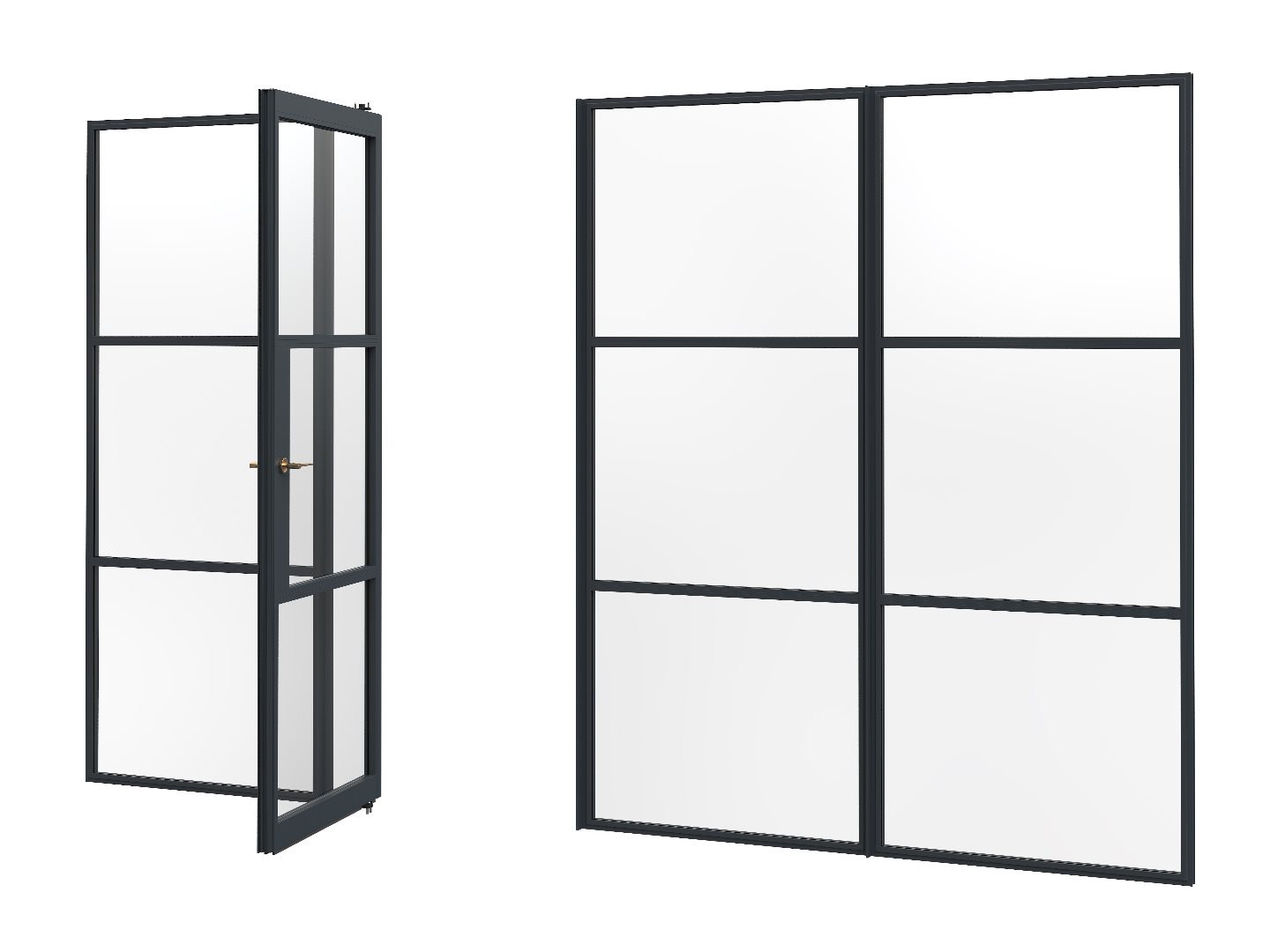

Fixed Screens
Elegantly partition living or working spaces while keeping light flowing throughout.

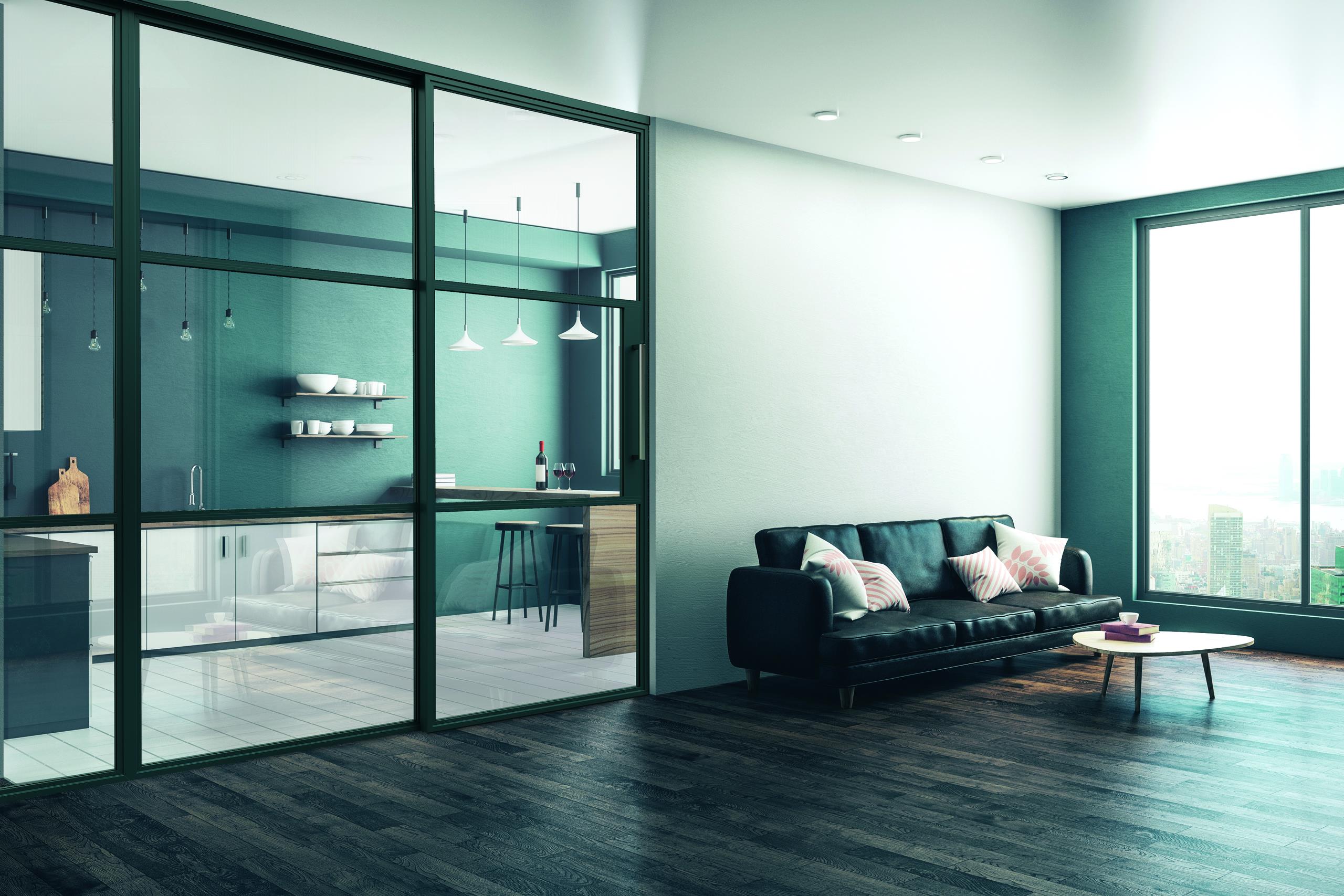

Creating Space & Light
AluSpace gives architects and interior designers the freedom to combine privacy with light. A huge range of colour and design options, a small number of core components, and a choice of classic, modern or industrial handles — supplied matched, contrasting or complementary to the screen.

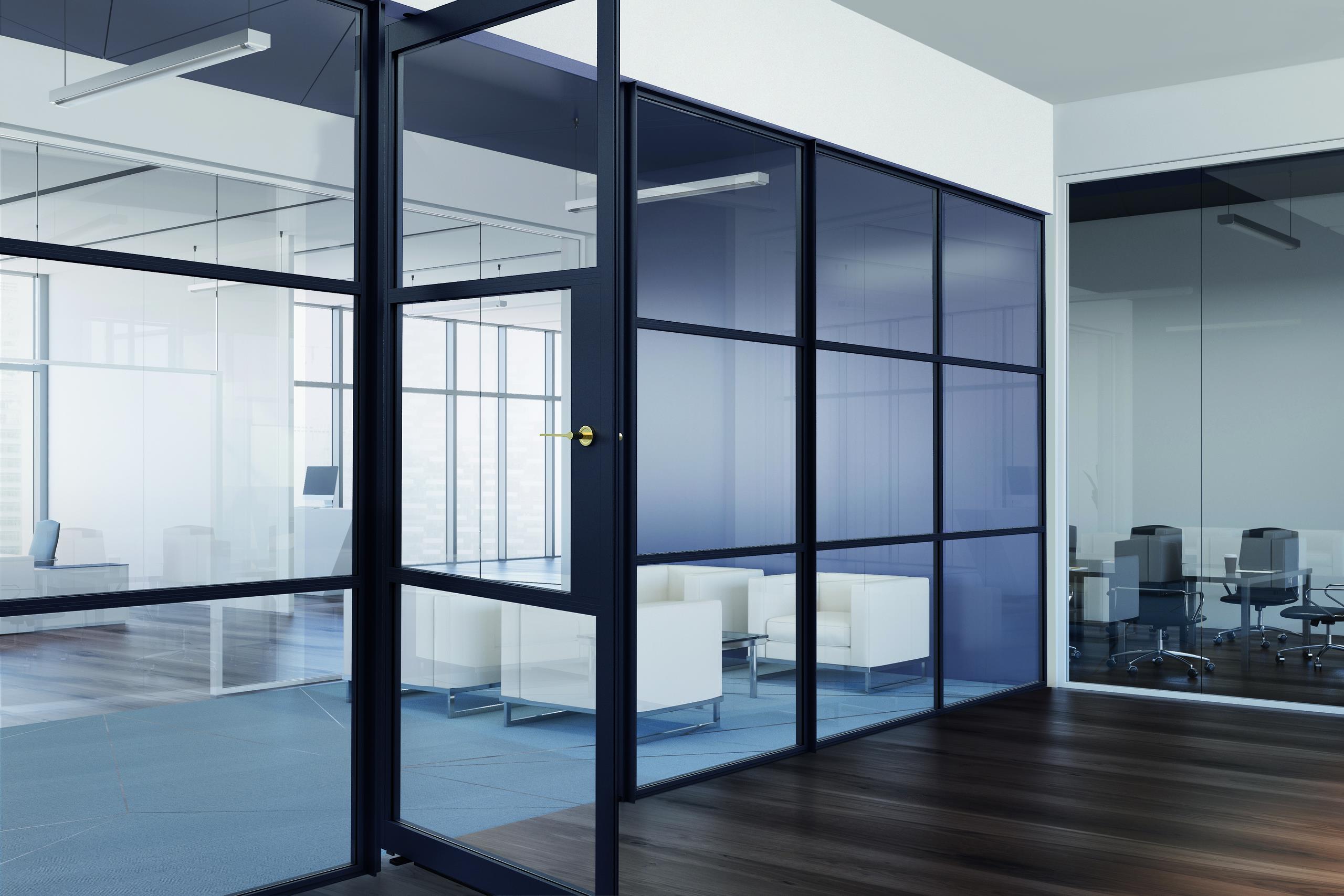

Home & Commercial
Equally at Home in Business

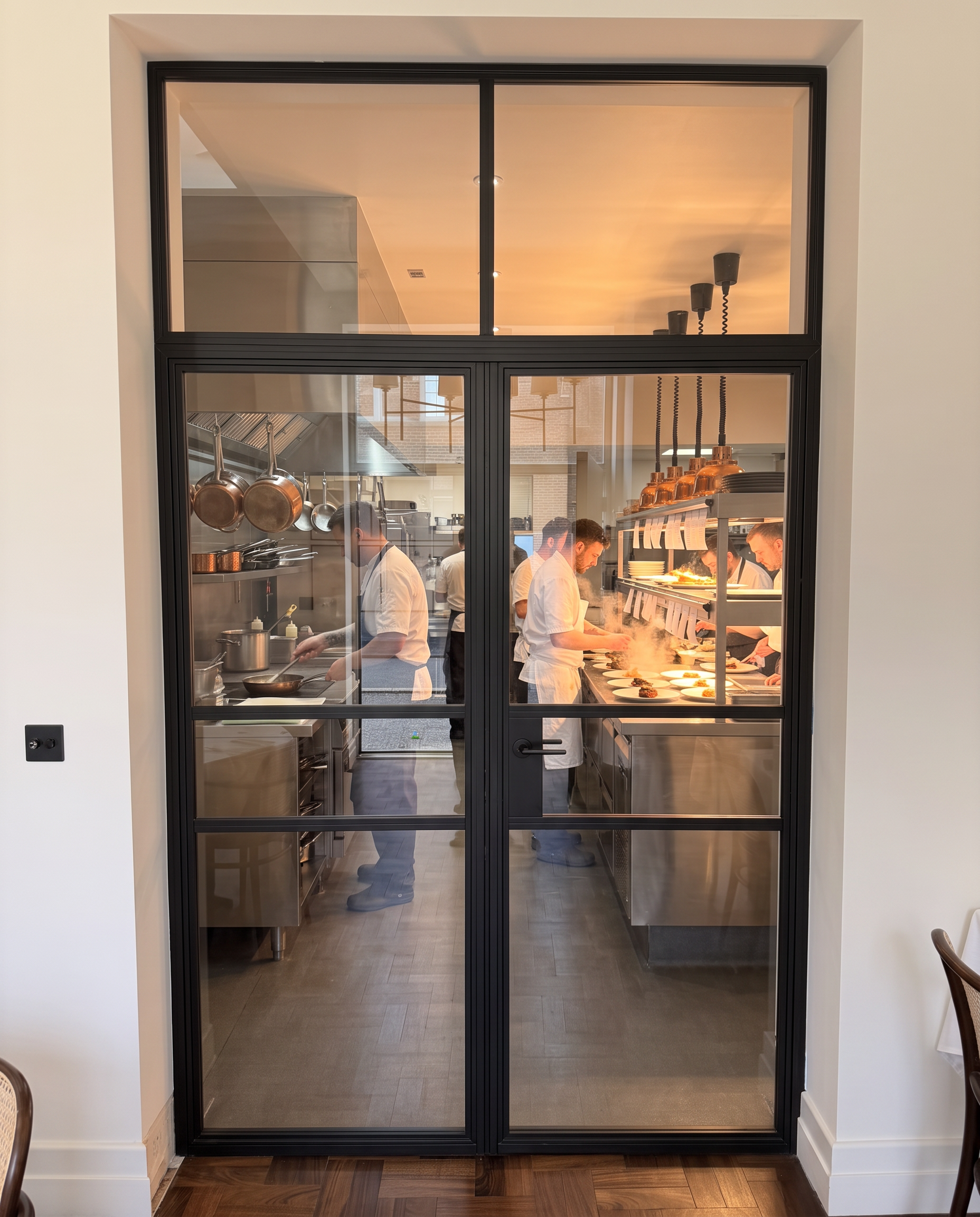

AluSpace is not just for houses. The same slim aluminium framing works hard in restaurants, bars and hotels — glazing off a busy kitchen or pass while keeping the theatre visible and the noise, heat and smells where they belong. It is equally suited to offices, meeting rooms, showrooms, clinics, salons and retail fit-outs, creating quiet, defined zones without shutting out daylight.
Robust hardware, a hard-wearing powder-coated finish and easy cleaning make it a practical choice for high-traffic commercial spaces, while the residential-grade detailing keeps it looking sharp.

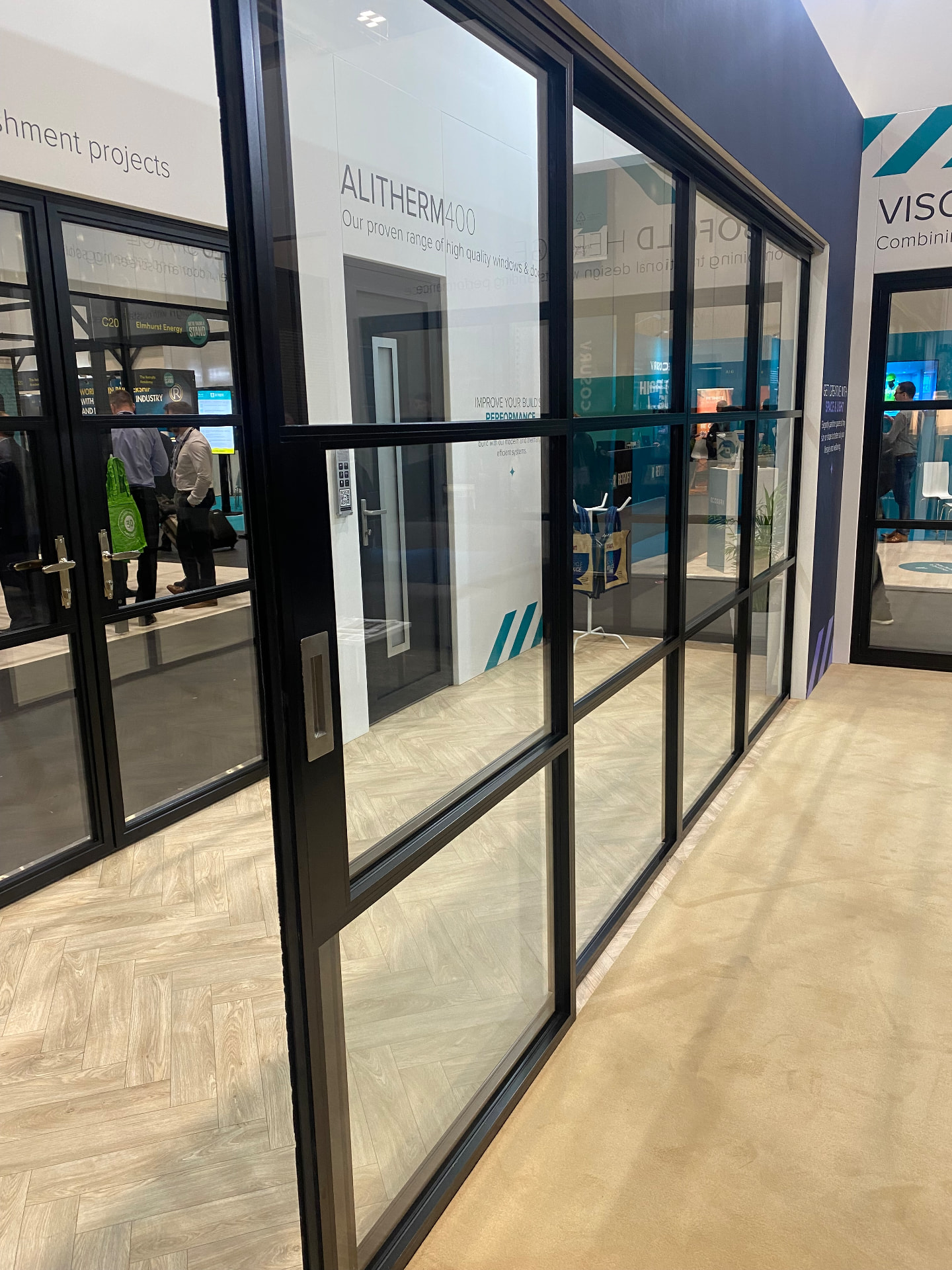

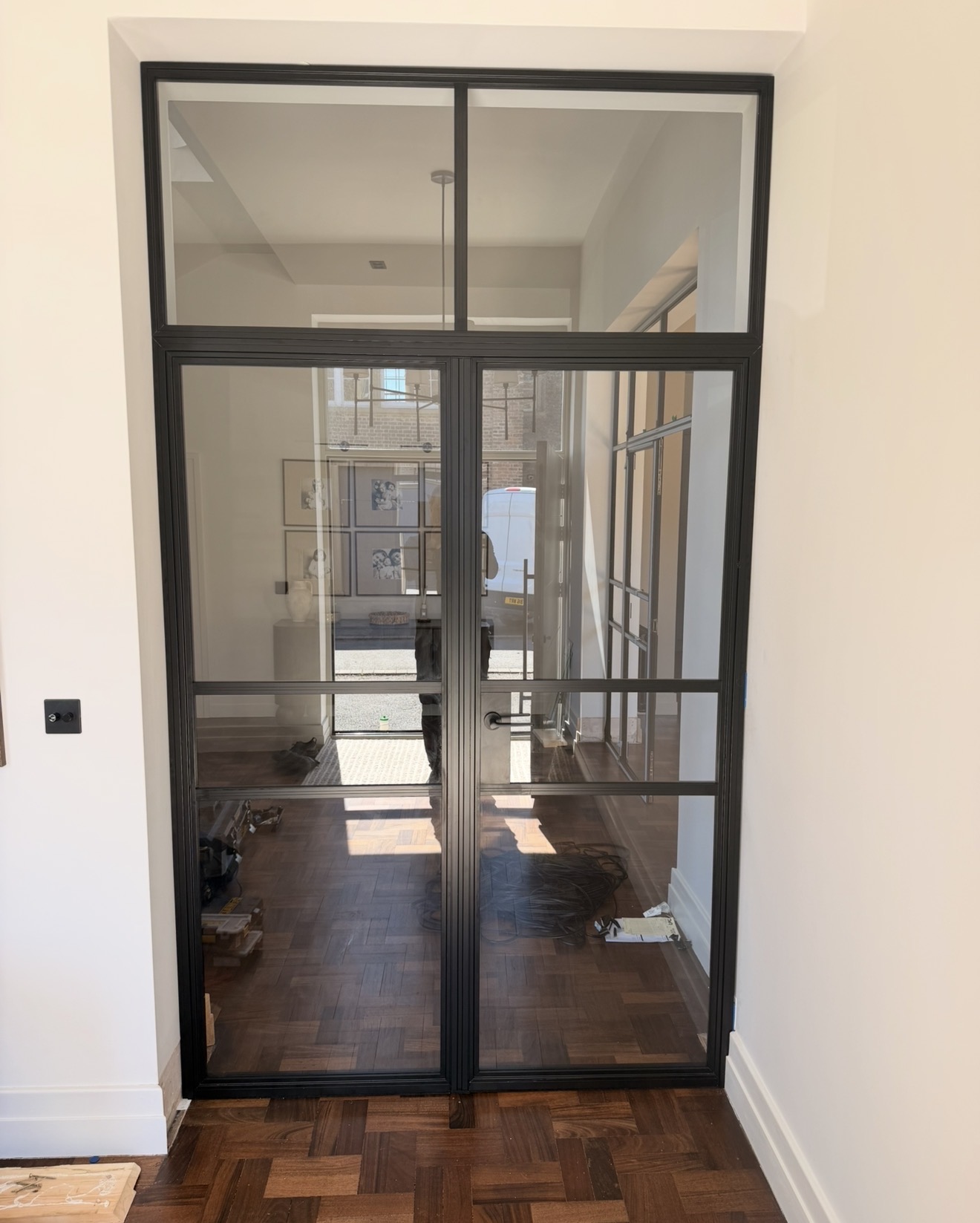

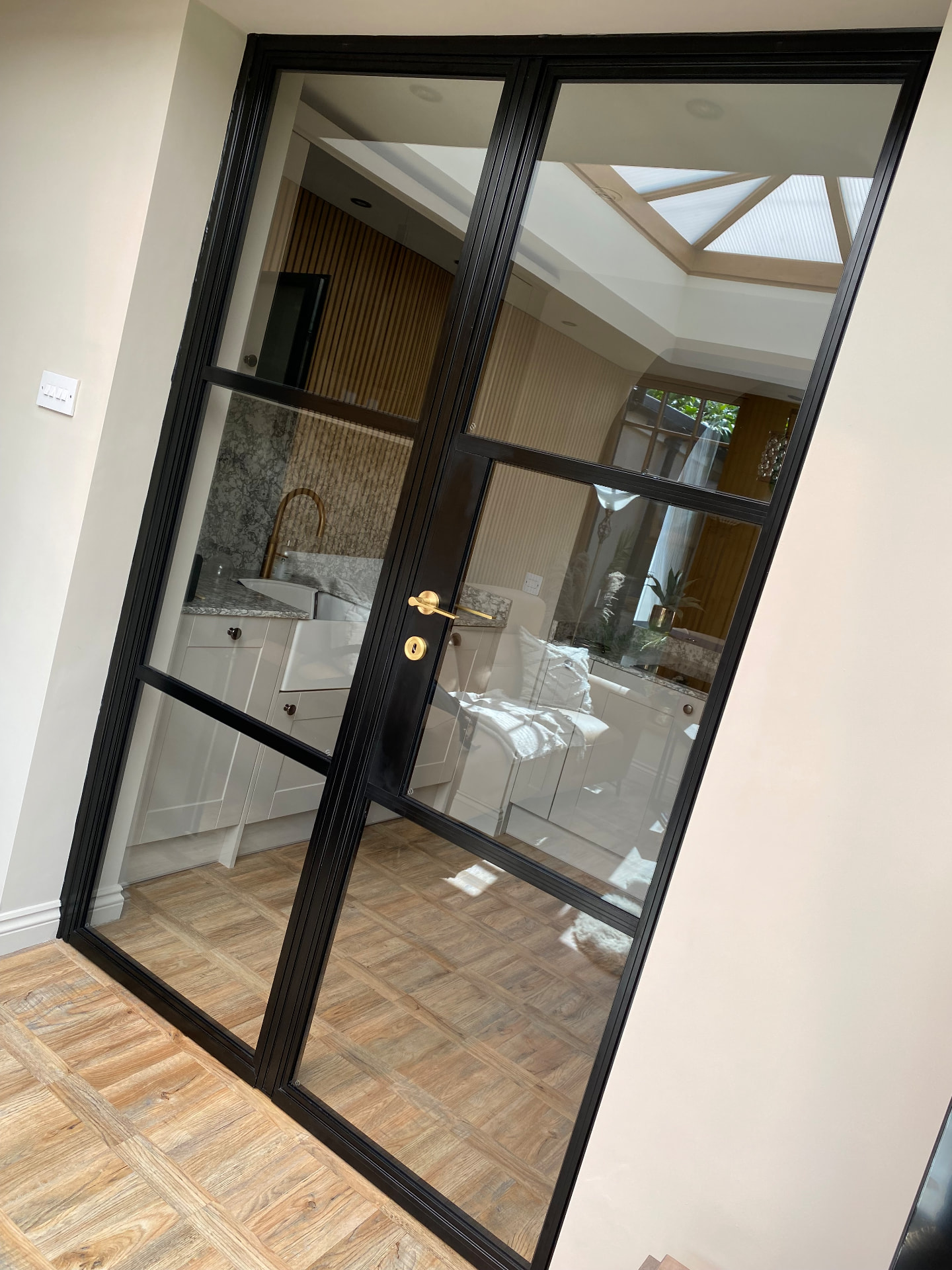

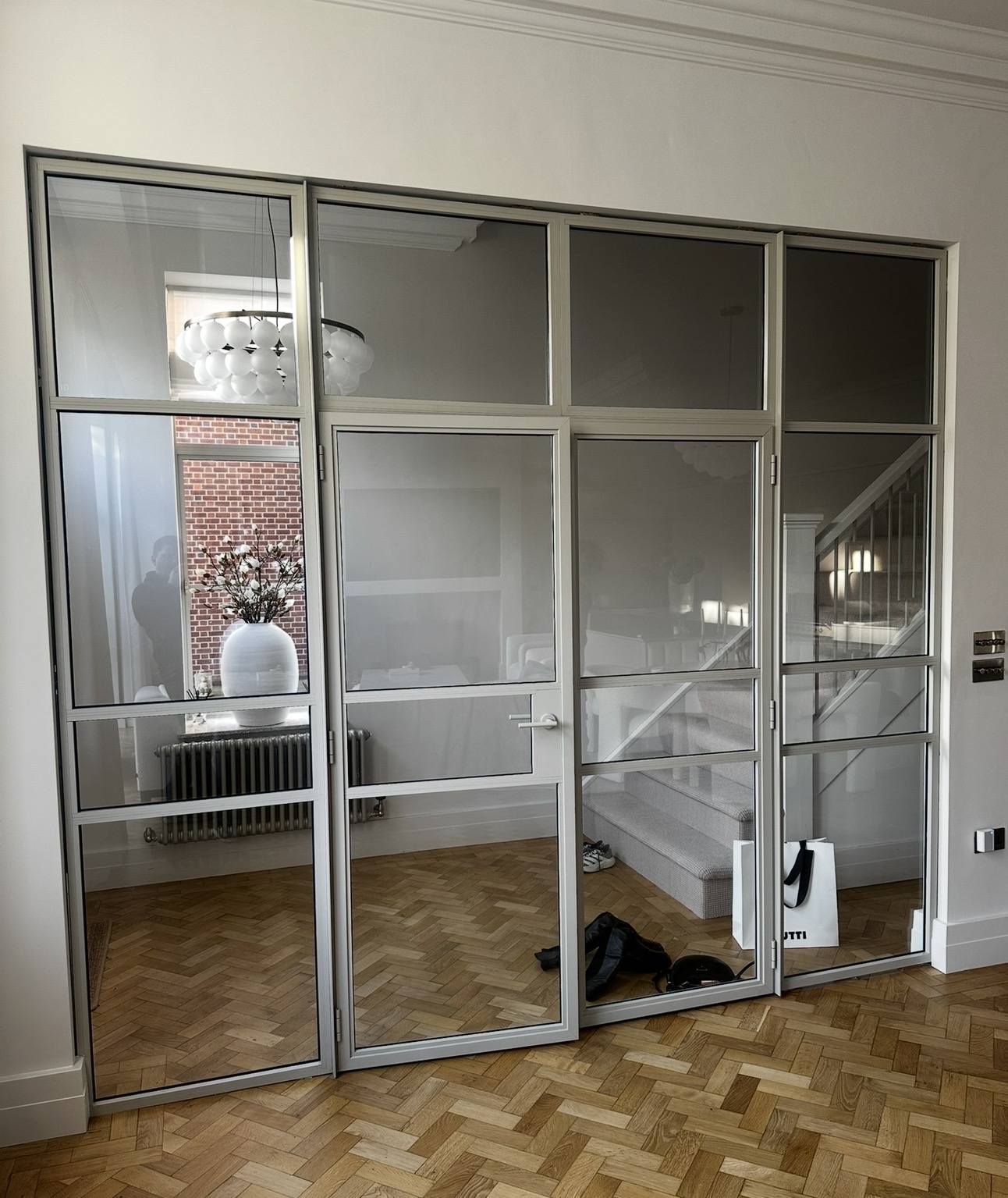

Our Recent Work
A selection of internal screens and doors we have designed, supplied and fitted.
Specification & Design Limits
Maximum sizes and options for each AluSpace configuration.
Fixed Screen
- Maximum width
- 1400 mm
- Maximum height
- 2500 mm
Hinged Doors
- Width
- 400 – 900 mm
- Maximum height
- 2200 mm
- Maximum weight
- 60 kg
- Door
- Single or double
- Glazing
- 6, 8 or 18 mm
- Colour
- Single colour
Pivot Doors
- Width
- 400 – 2000 mm
- Maximum height
- 2500 mm
- Maximum weight
- 100 kg
- Door
- Single
- Glazing
- 6, 8 or 18 mm
- Colour
- Single colour
Sliding Doors
- Width
- 400 – 1200 mm
- Maximum height
- 2500 mm
- Maximum weight
- 100 kg (ACINT313 rollers)
- Door
- Single
- Glazing
- 6, 8 or 18 mm
- Colour
- Single colour
System Dimensions
- Brand
- AluSpace
- Material
- Aluminium
- Frame depth
- 35 mm
- Typical sightlines
- 35 – 69.5 mm
- Glazing
- 6, 8 or 18 mm
Fixed screen sizes are based on the INT255 coupler limit at 0.8kN/m. Size limits can vary depending on the application and category of building — please refer to Approved Document K and CWCT for the required loading on your project.
Downloads
Brochures & CAD Files
Manufacturer literature and drawing files for the AluSpace interior screening system.
Warranty
Assured Performance
Every AluSpace installation is supplied with a comprehensive guarantee covering manufacturing defects in the aluminium profiles, powder-coated finish and moving hardware, subject to correct installation, normal domestic or commercial use and routine cleaning and maintenance.
10y
Profiles
10y
Finish
5y
Hardware
Indicative cover only. Full written warranty terms, exclusions and coastal or marine-environment conditions are confirmed with your quotation.
Speak to us
Every AluSpace screen is made to measure.
There is no online configurator for AluSpace — sizes, configurations, colours and handles are all quoted individually. Give us a call or drop us an email and we will talk your project through and price it up.
